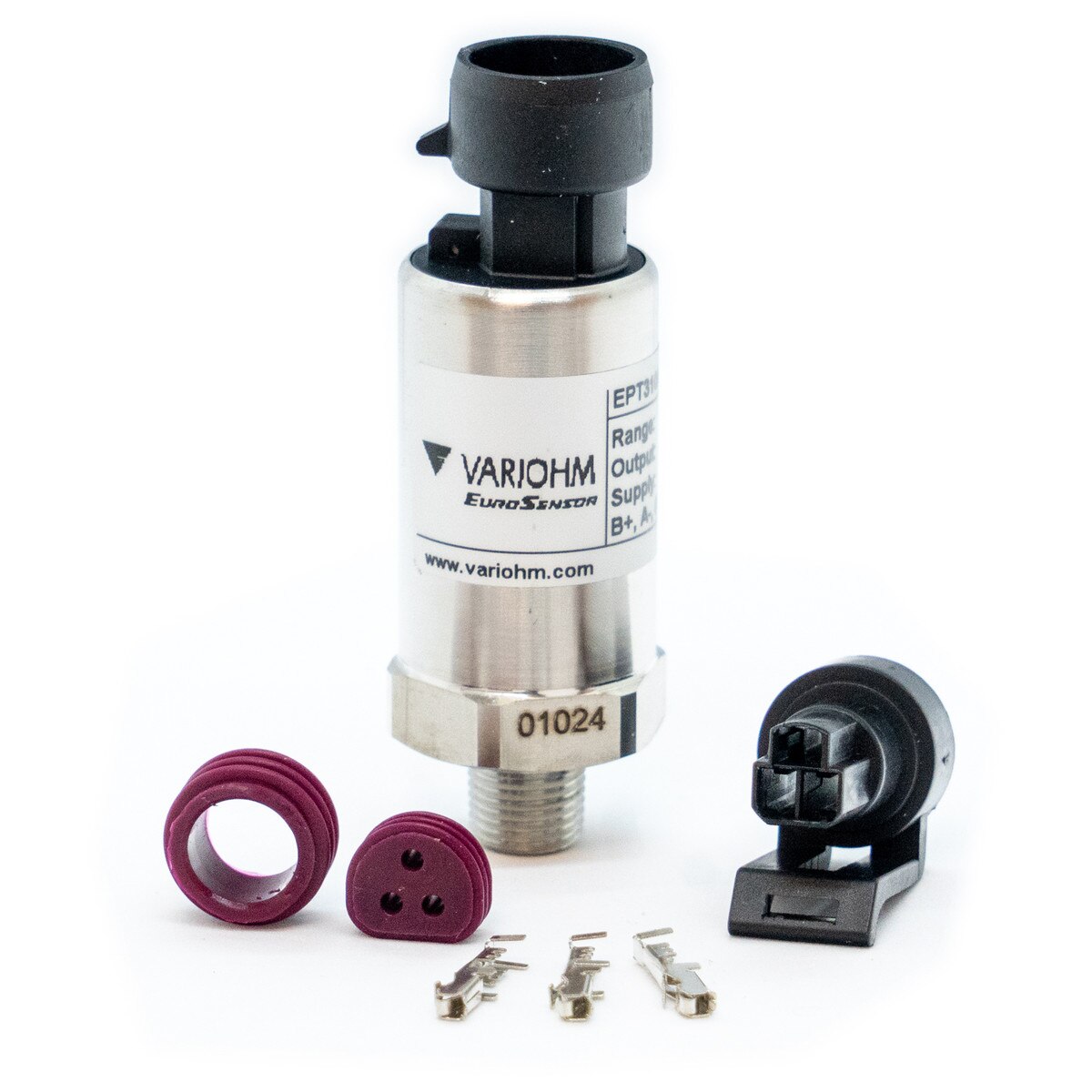

The Link 5 Bar MAP sensor reads up to 5 Bar absolute pressure. This means that it is suitable for turbo or supercharged applications running up to 4.0 Bar (or 58psi) of boost pressure.
- Includes Plug and Pins
- Mount via weld on bund, tapped hole or remote with a barb
- Using Link G4/G4+/G4X ECU’s select the MAP sensor type in PC Link as ‘Link 5 Bar’
Further specifications and wiring diagram below
Calibration- 0kpa = 0.500v, 500kpa = 4.361v
